SKU:26243331

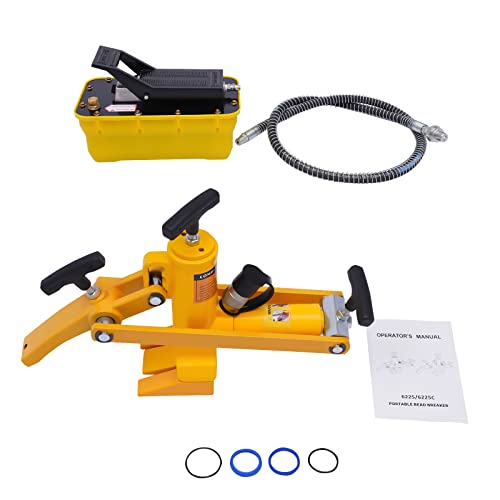

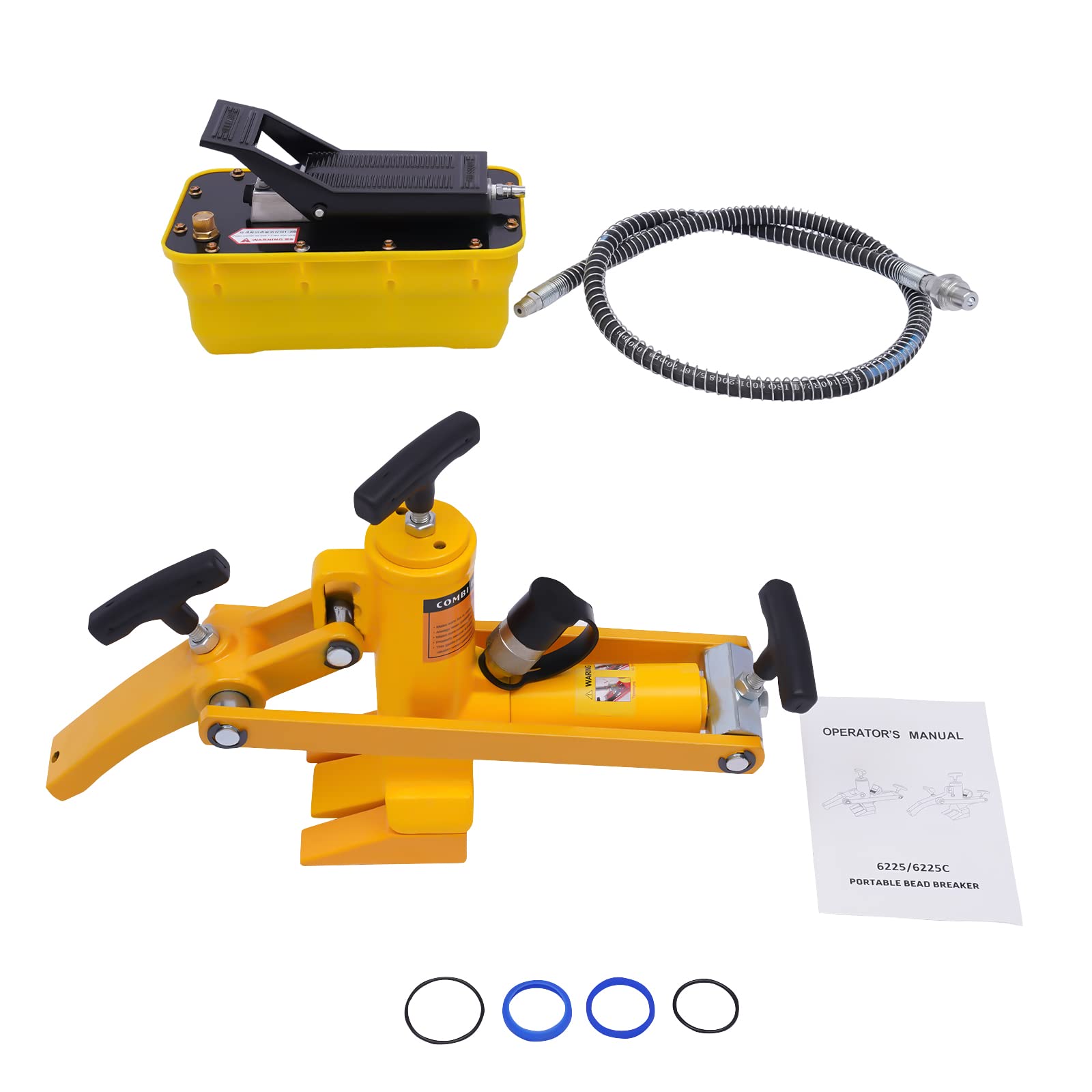

Features of Bead Breaker1. Hydraulic bead breaker delivers 10,000 lbs. of pure power to break beads smoothly2. Works on any 1, 2 and most 3 piece 2-5-10 hole budd and all tubeless truck tires rims, including some new style wheels3. Breaks beads in seconds using 10,000 lbs of force4. No screws, bolts, or attachment5. Not for use in 5 piece rims.6. Uses any 10,000 PSI Hydraulic Pump7. Self-retracting8. Working Range up to 5"9. Can be used on truck, farm, tractor, garder, combine, and skidder tires with wheel still onSpecifications of Hydraulic Pump1. 1/4NPT air inlet2. 3/8 NPT oil output, safely builds to 10,000 pounds and has a built in safety overload pump saver3. Oil flow/delivery: 0.75-0.95 L/min4. Fuel Tank Capacity: 2.3LPackage Includes1x Hydraulic Bead Breaker1x Hydraulic Foot Pump1x Air HoseNoteInstallation manual is NOT included
【Wide Applications】- VONZOER Manual bead breaker is widely used in the repair and replacement of tires for ATV, golf cart, tractor, truck, agricultural vehicle, etc., works on any 1, 2 and most 3 piece 2-5-10 hole budd and all tubeless truck tires rims, including some new style wheels.

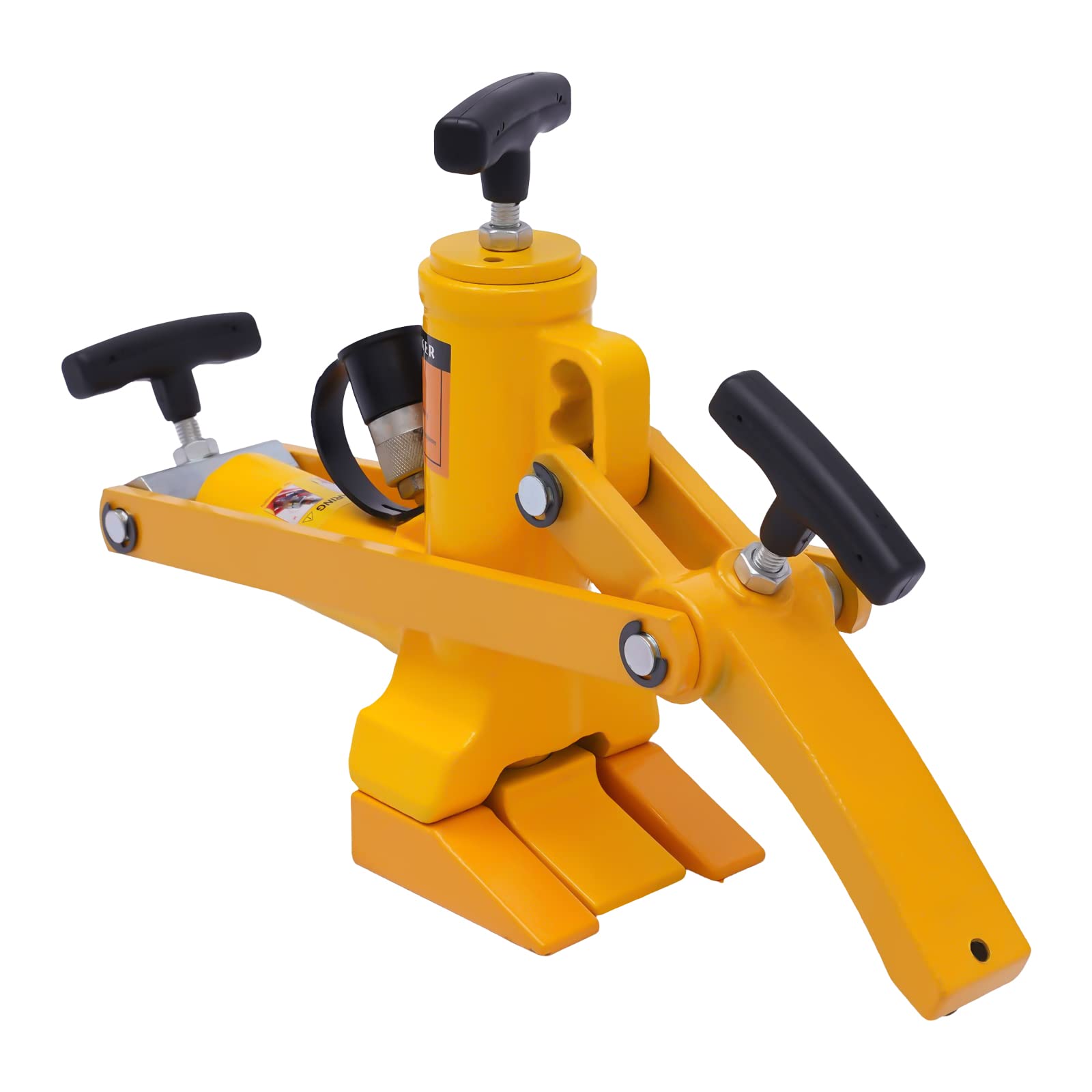

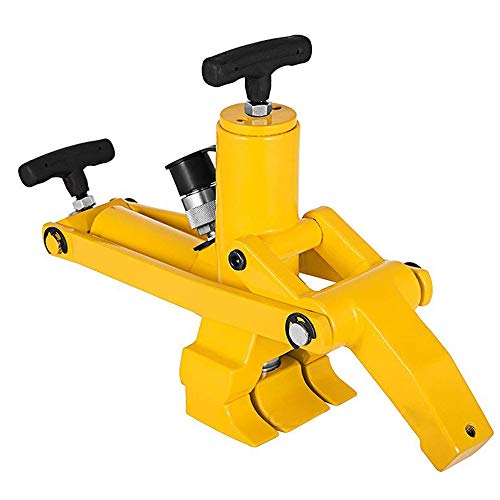

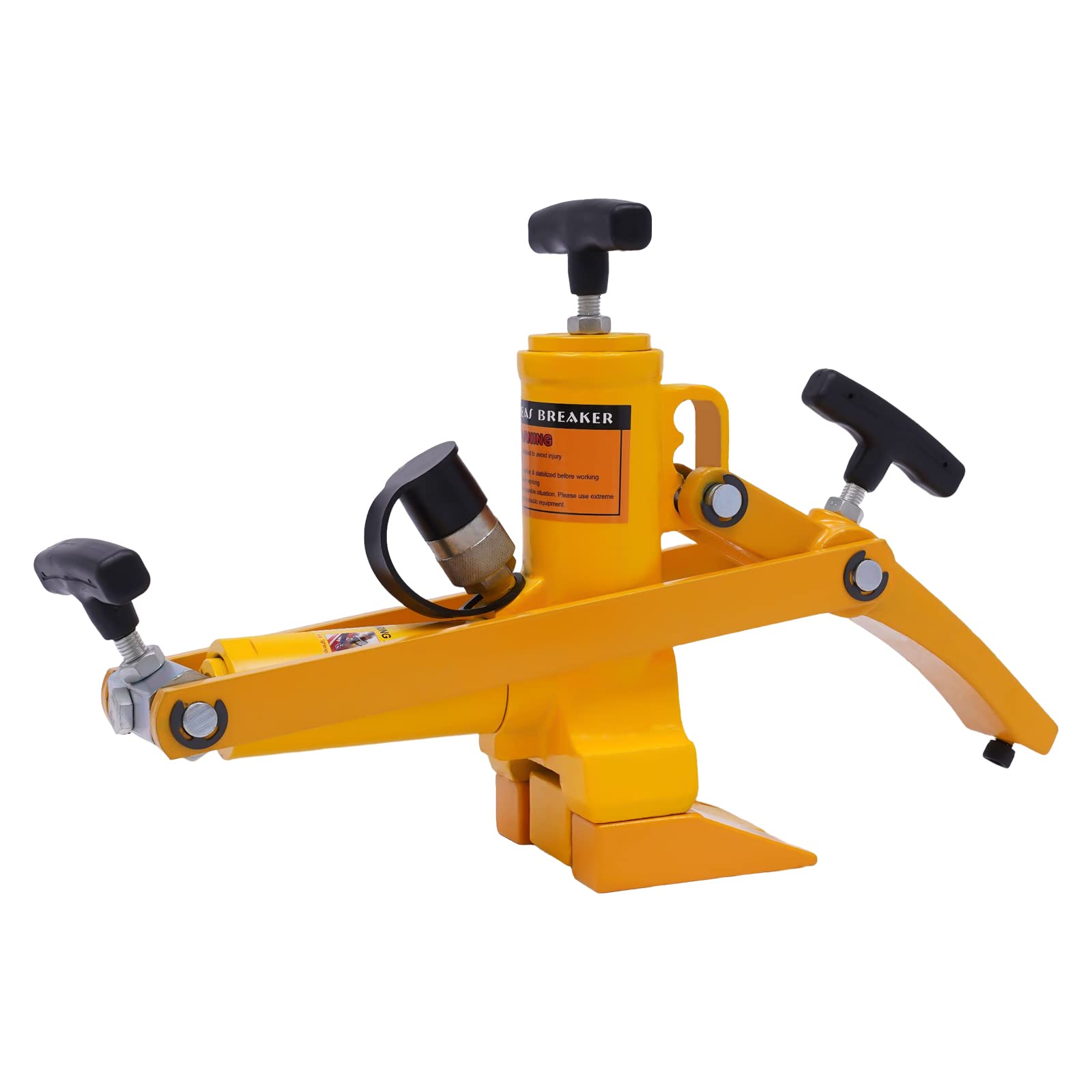

【Sturdy and Durable】- This bead breaker consists of high-grade cast iron frame and precision-worked components, rugged construction; The pump core and reservoir of the foot pump are made of aviation aluminum, equipped with a high-pressure tubing.
【Great Performance】- The hydraulic tire bead breaker delivers 10,000 lb of force in seconds to break beads steadily, work range is up to 5" (12.7 cm), pressure range is 40 to 150psi (2.8 to 10.3Bar); The foot pump has a max. work pressure of 10,000 lb, with 1/4 NPT air inlet and 3/8 NPT oil output, oil flow is 0.75 to 0.95 L/min.

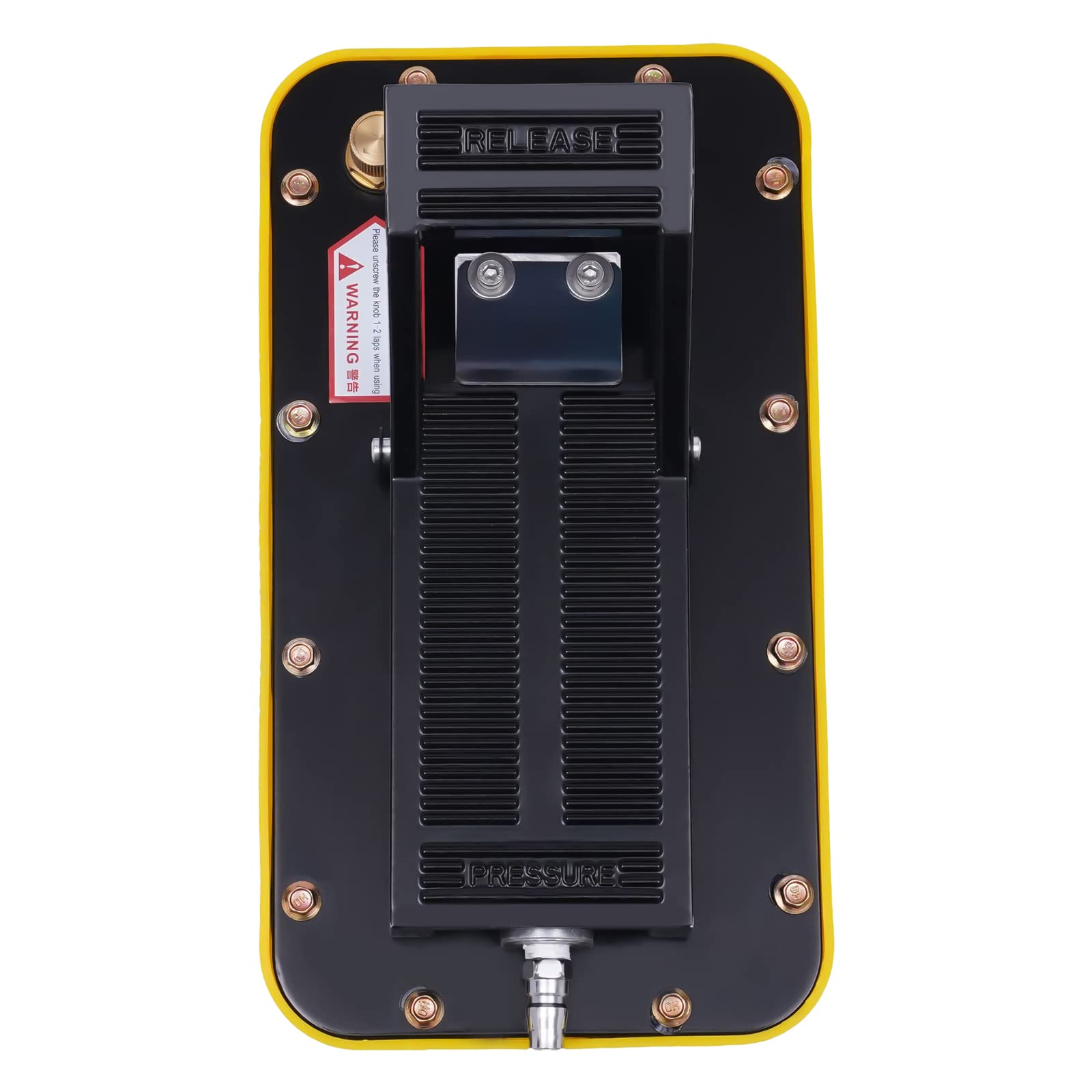

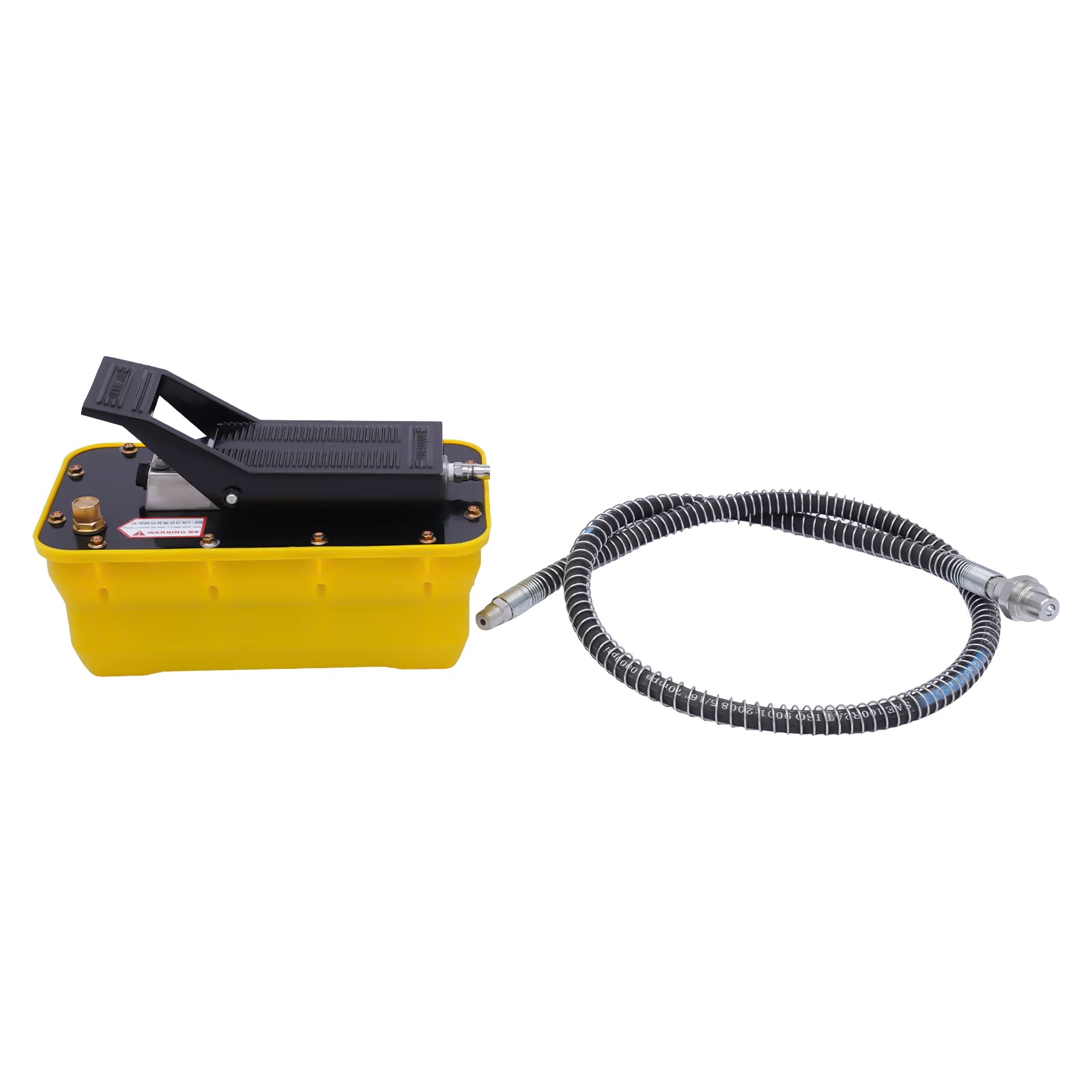

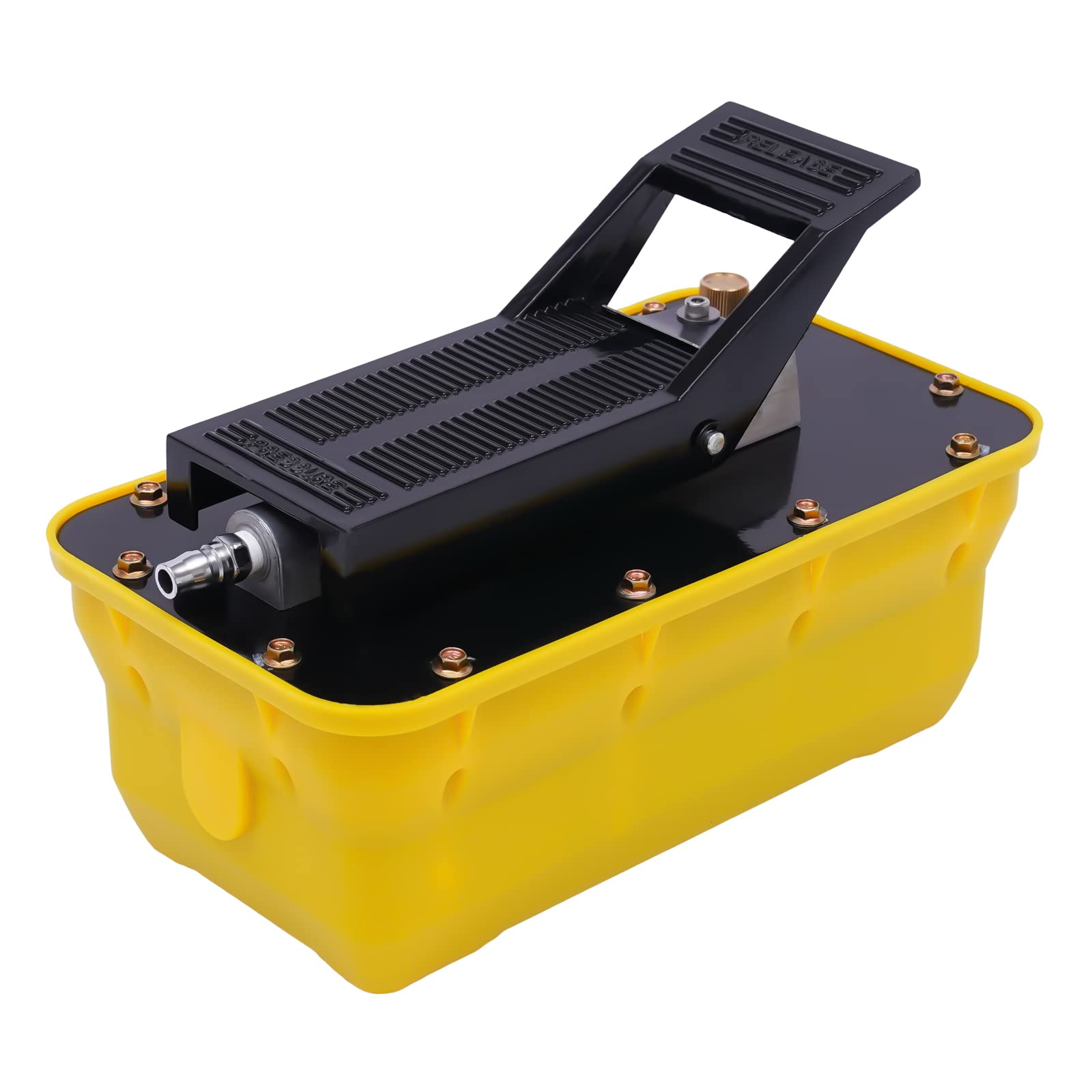

【Ergonomic Design】- The hydro-cylinder of the bead breaker is installed with a strong spring, with self-retracting technology under the force of the spring, easy to operate; The foot pump adopts ergonomic foot-actuated design to achieve hands-free operation for appling, holding and releasing pressure.
【Safe Operation】- The foot pump is built-in safety overload pump saver ensures work safty; With release lock plate, so the operator can release and remove foot as release/return takes effect.
