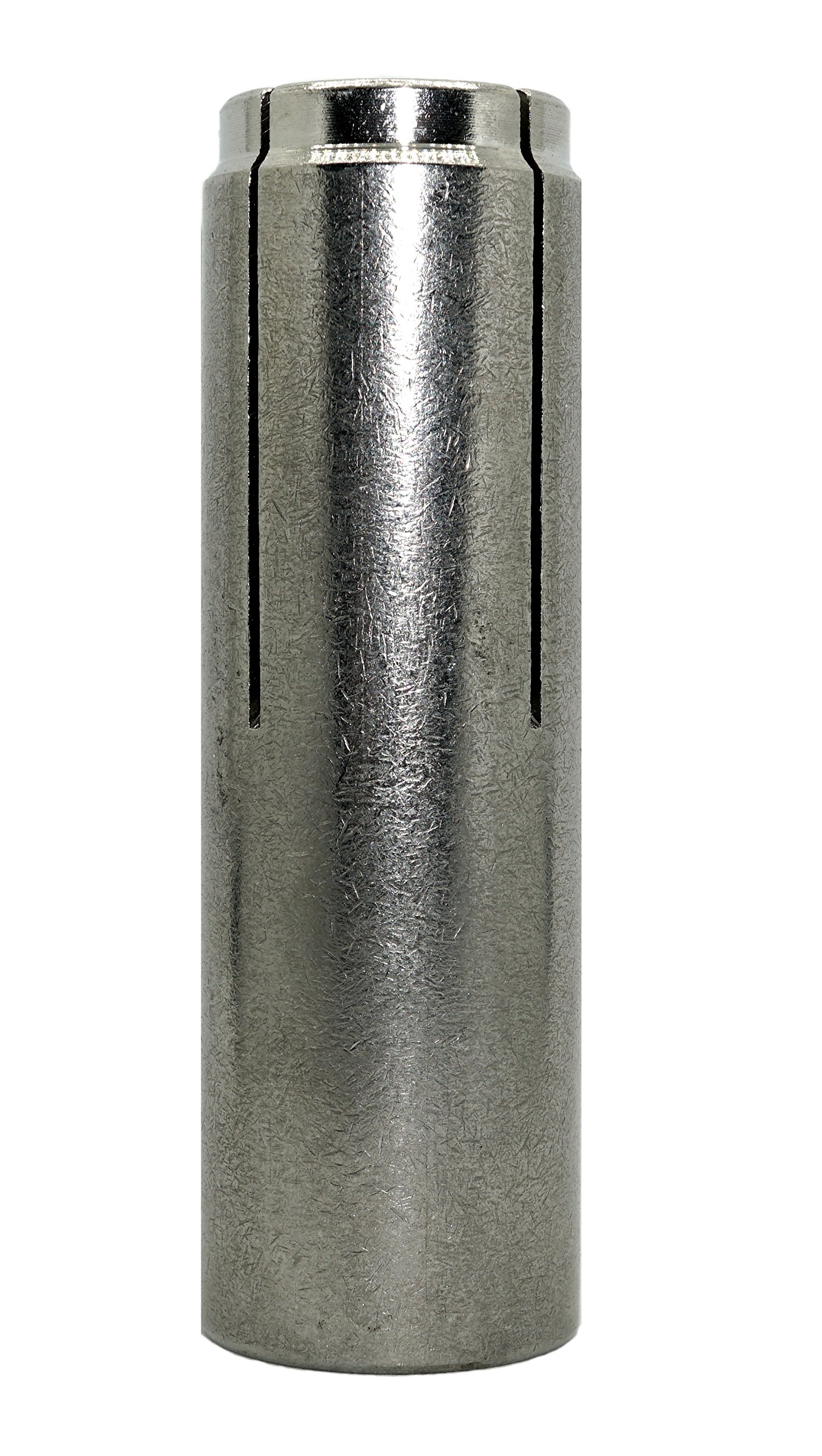

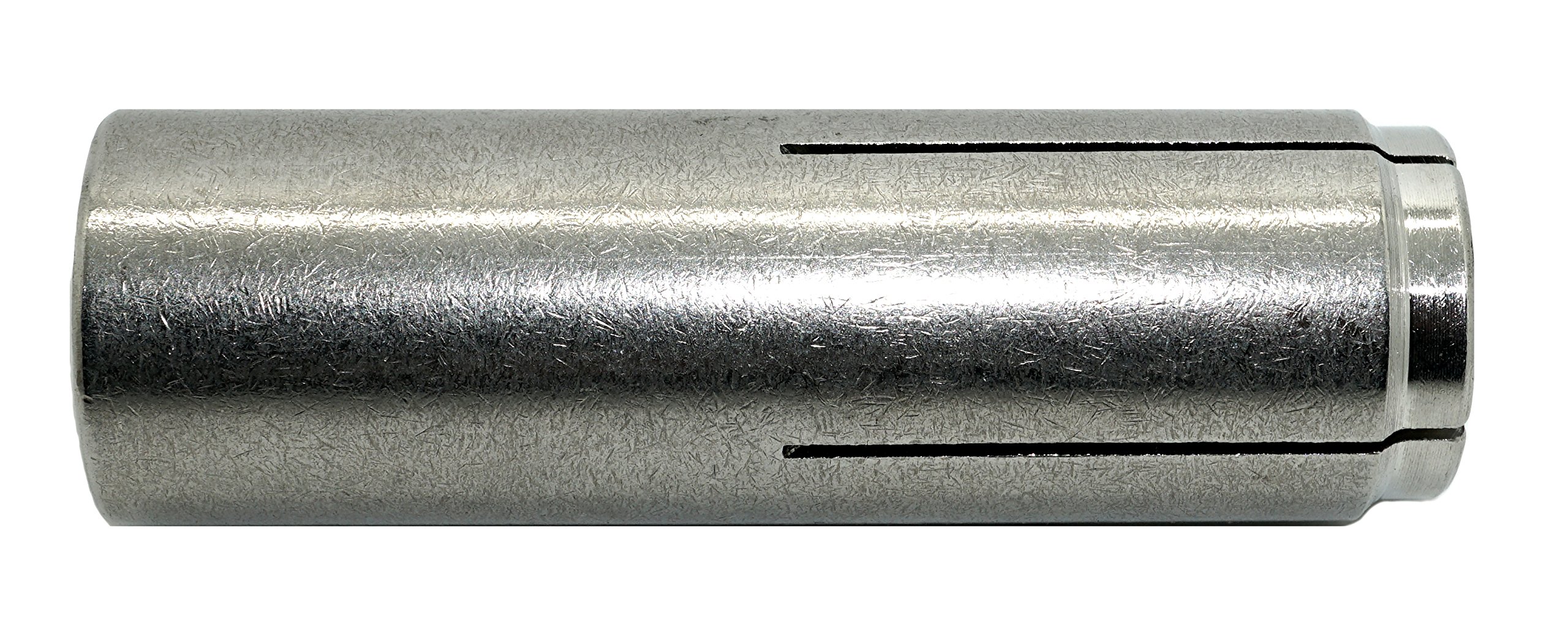

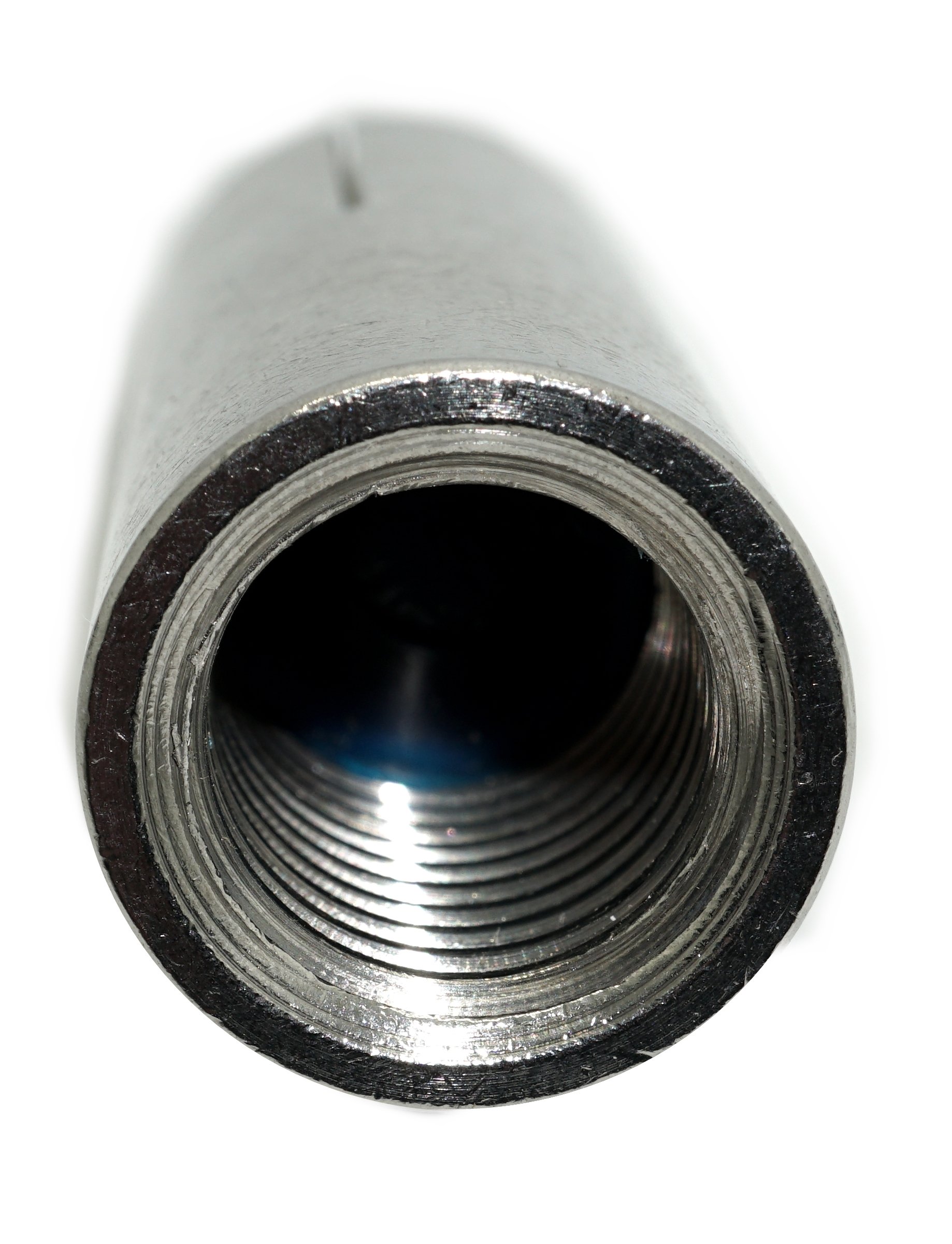

CONFAST 5/8" Drop-in Anchor - 316 Stainless Steel Concrete Anchor with Setting Tool (25-Pack) - Perfect for Heavy-Duty Construction, Masonry Work & Concrete Fastening Projects

Product Description

ApplicationsThe anchor is made from 316 Stainless Steel. This anchor is designed for use in Concrete only, and should never be used in block or brick base material. EnvironmentThe anchor is designed for use in a Submerged/Chemicals environment.Hole Diameter/Bit DiameterThe anchor requires a 7/8" hole to be drilled in the base material (Concrete only). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.Minimum EmbedmentThe minimum anchor embedment into the concrete is 2-1/2". Therefore, the anchor must be installed so that a minimum of 2-1/2" of the anchor is embedded into the concrete.Spacing between AnchorsEach anchor must be spaced a minimum distance of 8-3/4" from each other when measured center to center.Edge DistanceIt is very important not to install the anchor any closer than 4-3/8" from an unsupported edge of the concrete.
